產品概述
流體壓力可達100psi
先導式的空氣閥，可在線維修，并無需打開內腔
環氧涂層可抵御惡劣的工作環境

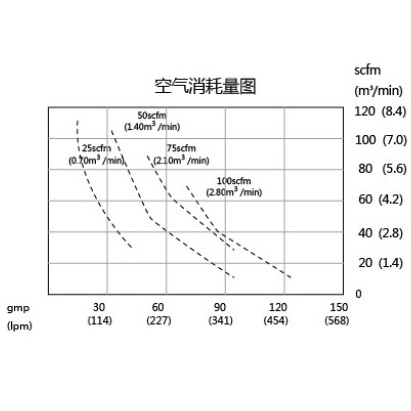

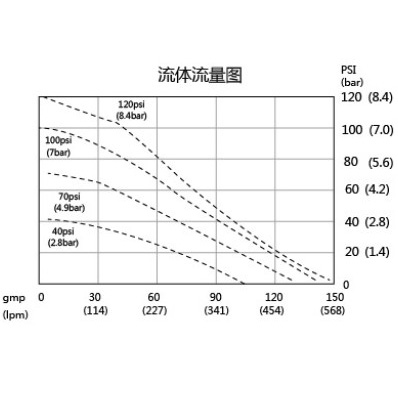

性能曲線

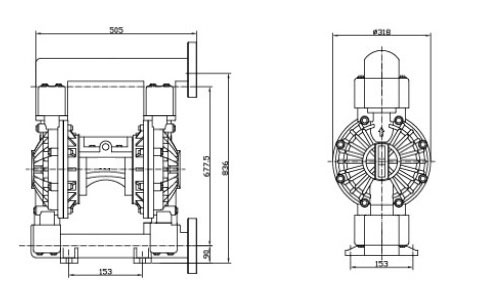

安裝尺寸圖
技術參數
| Max working pressure | 100psi(0.7Mpa,7bar) |
| Max flow rate | 150gpm(570 lpm) |
| Max reciprocating speed | 145cpm |
| Max suction height | 5m |
| Max permitted grain | 6mm |
| Max air consumption | 175scfm(4.9m3/min) |
| Air inlet size | 1/2in.npt(f) |
| Air outlet size | 1/2in.npt(f) |
| Fluid inlet size | 2in.npt(f) |
| Fluid outlet size | 2in.npt(f) |
| Weight | 28.0kg |
